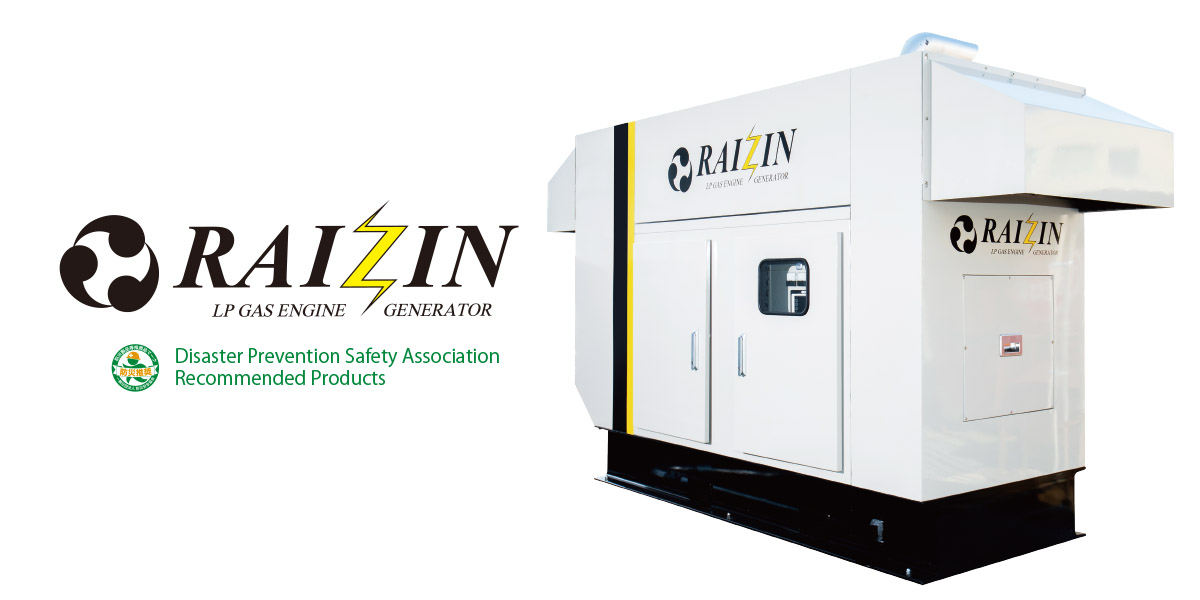

The only emergency power generator in japanLP GUS ENGINE GENERATOR "RAIZIN"

LPガスエンジン発電機ライジン

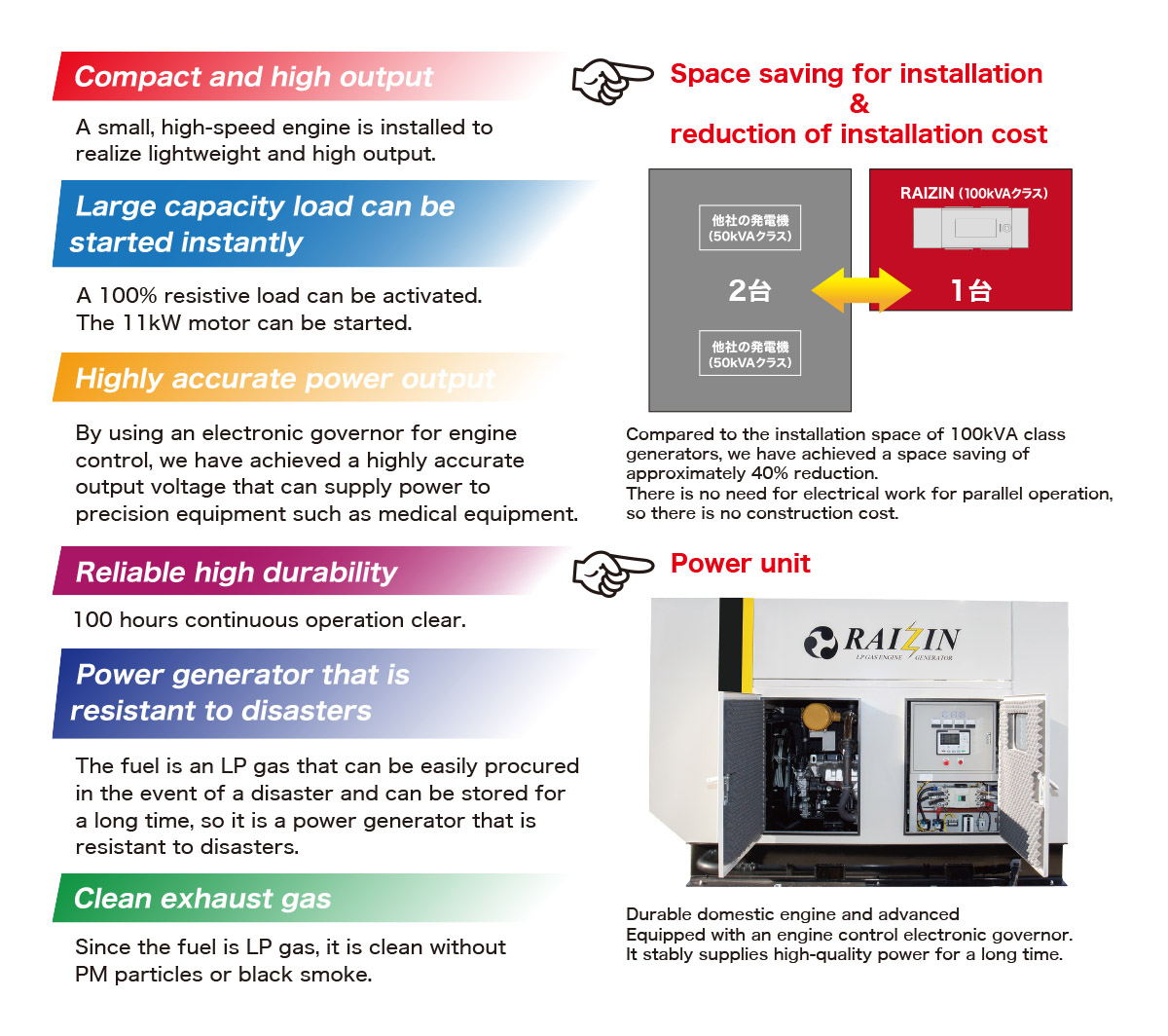

Characteristics of emergency LP gas engine power generator "RAIZIN"

Just connect the LP gas cylinder and generate electricity. It can be used as an emergency generator of the lifeline in the event of a disaster.

LPガスエンジン発電機ライジンの特性



Basic specificationsRAIZIN's

Generator JH-GEG101

Output 85/100(kVA) 68/80(kW) Voltage 200/220(V)
Phase 3 Ampere 245/262(A)
Frequency 50/60(Hz) Pole 2
Speed 3,000/3,600(rpm) Power factor 80(%)
Energize system Brushless excitation system

Engine

Munufacture NISSAN Type Water cooled straight risen 4 cycle
Model TB45 Number of cylinder 6
Total emission 4.478(ℓ) Output 81/97(kW)
Fuel Propane gas(LPG) Fuel consumption rate (※1) 10.3/13.2(N㎥/h)

※1 The fuel used should have a margin of +5%. The supply of LP gas is JIS Class 1 No.1 (separate cylinder) 2.8±0.5kpa, and when 50Kg vaporizes, it becomes about 24.1m3.

Automatic start generator panel

Construction Onboard generator Alarm Buzzer alarm
Main circuit breaker Fuse-free circuit breaker (wiring circuit breaker) External contact lead-out terminal Malfunction (86X) 1 point at a time
Voltage establishment (84GX) 1 point
Main circuit switch
(Power generation-commercial power)
Option

DC power supply

Battery DC12V 70Ah Charger On-board type

Outfitting

Cooling method Radiator cooling system Installation method Foundation bolt fixing
Exhaust gas silencer Package mounted Engine-generator direct connection method Flexible direct connection method
Gas leak detector Installed in the package Package structure ① Outdoor package type (standard specification)
② Outdoor package type (optional specification)

Characteristic

Speed fluctuation rate 0.5% Voltage fluctuation rate 0.5%
Start time 40sec Noise level(※2) 68/72

※2 The noise level is the average value of 1m square in no load operation.

Other

Approximate dry weight About 1.7t Size 2,600(L)mm×1,000(W)mm×1,950(H)mm
Unit installation location conditions Ambient temperature (5-40°C), humidity 80%, altitude less than 150m



Estimated power consumptionPower generation capacity

RAIZIN 1 unit can ensure this power supply only. ※85kVA/68kW 50Hz

Electrical product name Capacity per unit (W) Available number Total (W)
Elevator 5,000 2 10,000
Bissiness air conditioner 1,500 12 18,000
Feed water pump 2,500 2 5,000
Water heater 40 30 1,200
Lighting equipment(40W×2) 80 100 8,000
Buisiness refrigenetor 1,200 3 3,600
Industrial washing machine 2,000 2 4,000
Television・PC 100 30 3,000
Outlet 100 30 3,000

Total power 55.8(kW)
